Soda Lime Flint Melting 3 TPD Electric Glass Furnace

    Buy cheap Soda Lime Flint Melting 3 TPD Electric Glass Furnace from wholesalers

    Buy cheap Soda Lime Flint Melting 3 TPD Electric Glass Furnace from wholesalers
    • Buy cheap Soda Lime Flint Melting 3 TPD Electric Glass Furnace from wholesalers

    Soda Lime Flint Melting 3 TPD Electric Glass Furnace

    Ask Lasest Price
    Brand Name : JEFFER
    Model Number : Customized
    Certification : ISO9001, ISO14001, ISO45001
    Payment Terms : T/T, L/C
    Supply Ability : 1 set per 2 - 3 months
    Delivery Time : 150 days after receiving the down payment
    • Product Details
    • Company Profile

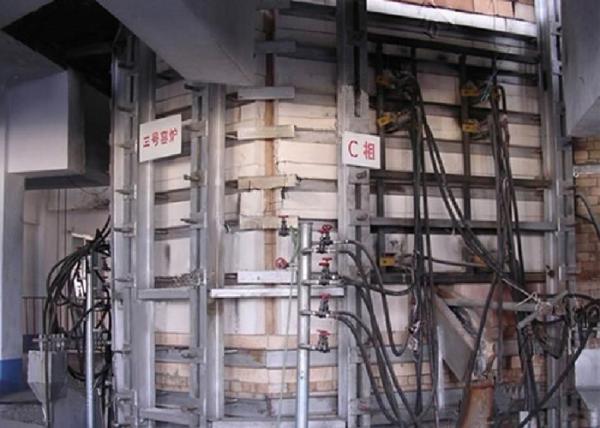

    Soda Lime Flint Melting 3 TPD Electric Glass Furnace

    High Stable Electric Glass Furnace Manufacturer from China


    1. Brief Description


    Glass was used for windows and doors by the Ancient Romans as early as the 4th century.


    In 1902, Voelker was granted a basic patent for melting glass using the heat generated by an electric current through the batched material. Under the continuous development and improvement of the furnace design technology and electrode, this electric melting method is extensively used.
    Between the year 1920 to 1925, Raeder from Norway used graphite electrode for furnace, which has successfully achieved a fully electric furnace.


    In 1925, Corneljus from Sweden took this kind of electric furnace to produce amber glass and green glass. The electric melting furnace adopts the method of blanket charging and the batching material floats on the surface of glass liquid


    Glass is an electric conductor under high temperature. There are alkali metal and potassium ions in melted glass liquid. These two ions have conductivity, when the electricity through the glass liquid, the joule heat will be produced, if there is enough calories produced, it can melt the glass, which is called “Glass Electric Melting”.




    2. Advantages of the electric melting:

    • High thermal efficiency, up to 80%~85%
    • More energy saving
    • Small footprint
    • Simple structure
    • Reduce the volatilization of expensive oxide in raw materials
    • Stable melting technology
    • No pollution
    • Lower noise level
    • Improved working condition
    • Homogenized glass liquid
    • High product quality
    • Automatic control
    • Less maintenance cost

    3. Furnace structure


    ItemDescription
    1Melting tank
    2Throat
    3Forehearth
    4Spout

    4. Melting section of electric furnace


    Using cooling top vertical melting type theory, which will concentrate the melting process. The design of melting area is benefited for glass melting and homogenization, no death zone in melting scope, that will ensure the melting efficiency of glass materials and clarification, producing high quality glass liquid.


    Adopt electric fused cast AZS materials for melting and non-melting areas, clay brick, light clay insulation brick and aluminum silicate products for other parts.


    Quality Soda Lime Flint Melting 3 TPD Electric Glass Furnace for sale
