8mm Thick, Pioneer Float Glass Processing Treatment Equipment

1. Brief Description

The name of float glass is because of the glass liquid floating and forming on a metallic tin liquid surface. By using this forming method, it is not need to overcome the gravity of the glass, it can enlarge the width of the glass, improve the speed of stretch, and increase the capacity and scale of production.

The production technology of float glass is the largest scale mechanization and automation methods of production of flat glass production technology at present time.

The float glass has a flatness surface, excellent optical performance, no distortions, due to its good quality, the yield float glass can be used for deep processing fabrication.

2. Characteristic

Because the glass liquid forms on the metallic tin liquid surface, it could achieve a high grade double faced fired polishing glass surface. The parallelism and flatness of float glass are as better as mechanical polishing effect, but it has a better mechanical capacity and chemical stability than mechanical polishing glass.


3. Thickness and Application

4. Raw Materials

Main materials are mainly including:

Auxiliary materials as the important raw materials, it mainly includes:

5. Technical Flow Chart of Float Glass Line

• Raw Material: Raw material grinding, mixing as required and prepare for discharging
• Furnace: To melting the solid material powder to glass liquid
• Forming: To form the glass liquid by tin bath
• Annealing Lehr: For cooling the glass product
• Cutting: To cut the glass into suitable width
• Finished Product: Put the qualified glass products for suitable packing

6. Main Equipment Description


6.1 Batch Plant

For batching and mixing the raw materials.


6.2 Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.


6.3​ Tin Bath

It is a key and one of most important equipment of float glass production line.

6.4.Protection Gas Station

In order to overcome the air and oxygen brought through the entering of the glass liquid and inert gas itself, a center percentage of hydrogen gas shall be added into nitrogen gas.

Besides the good melting efficient, the bright and clean surface of metallic tin is also another important key to produce good float glass product, So, an inert gas or reducing gas to be adopted for a kind of protection gas to prevent the tin from oxidized.

Nitrogen gas, a kind of colorless and odorless gas, which is a main component of protection gas, with a dissociation states in nature. An inert gas as nitrogen gas, it can not combust in air nor dissolve in water, which can prevent the oxidization of metallic tin, and no reaction between nitrogen gas and metallic tin.

Hydrogen gas is a lightest, colorless and odorless combustion gas, mainly existing under compound state. It is a strong reducing agent, with min viscosity, high conductivity and strong chemical activity, which can have chemical reaction with many materials to produce various kinds of hydride.

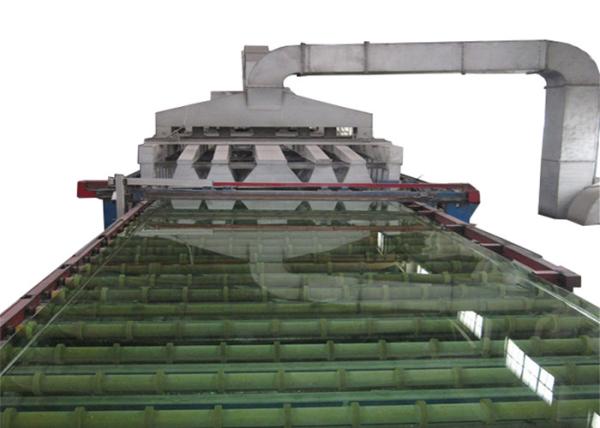

6.5. Annealing Lehr

In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.

6.6. Colde-end

• Inspection and pretreatment section
• Cutting and break section
• Stacker and packing section

JEFFER ENGINEERING, a China professional company that designs and provides complete glass melting technology as a global solution partner for the glass industry. With overseas subsidiaries in Russia, Egypt and Indonesia, JEFFER has met its demand for rapid local activity of the glass industry's requirement.

With its more than 40 years of experience in glass melting, JEFFER has combined conventional furnace technology with new furnace concepts in modern days, it has a wide range of experience in the design, manufacture and supply of different furnace types for production of Container Glass, Tableware Glass, Flat Glass, Figure Glass, Tube Glass, Opal Glass, Fiber Glass, Sodium Silicate, Frit etc.

We put the interests of our customers first and maintain close ties through high quality work and good after sale cooperation. Many long-term relationships with our customers span several decades.

The range of products and service does not only include melting tank, JEFFER also fabricates the main utility equipment such as providing combustion system and automatic instrument. Furthermore, with our staff, JEFFER can meet the requirements of the glass industry, such as Feasibility Studies, Plant Design, Material and Equipment Supply, Commissioning and Start-Up, Construction Supervision, Contract Management and Implementation, Plant Renovation, Global Consulting Services for Plant Operation.

With 24/7 hotline service, our service staff can respond quickly to help with any problems that may arise during the glass production process.

With customer's trust and praise, we are worthy of our reputation.
